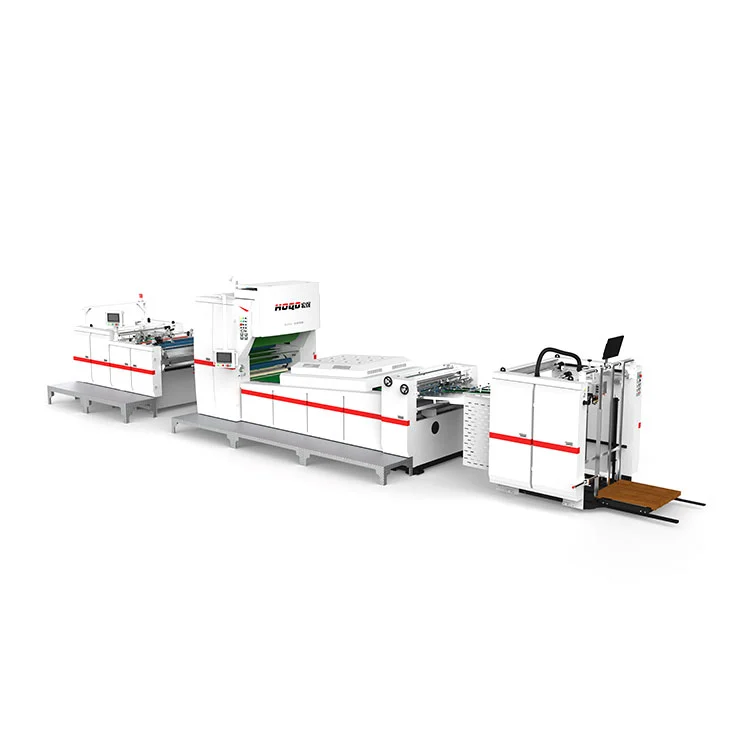

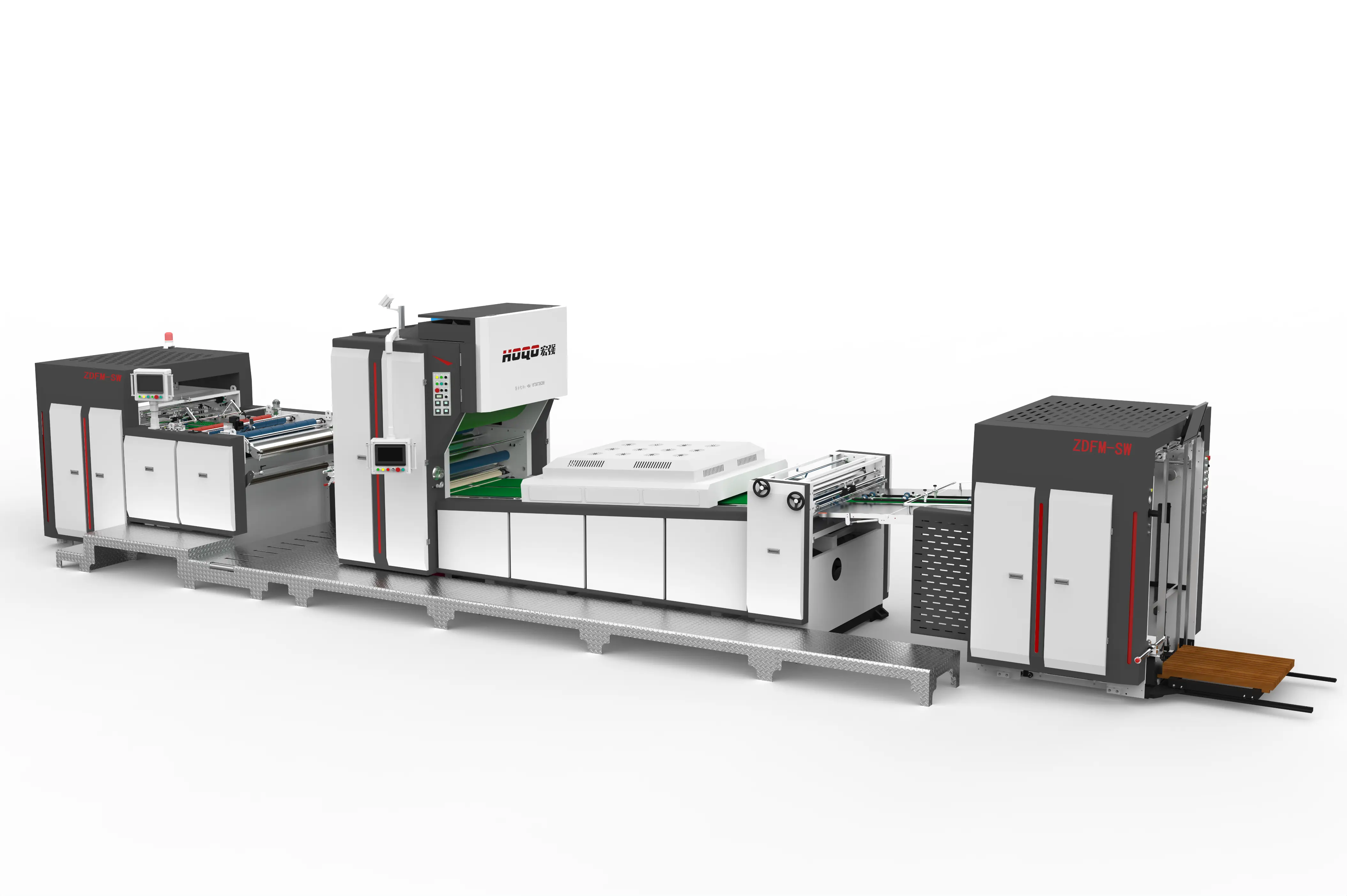

インテリジェントサーボウィンドウラミネートマシン

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Complete mechanical design with safety protocols and components certified to China's High-Tech Industrial Standards.

2. Unshakable Stability

Cast iron mainframe provides stable, well-damped operation even under heavy-duty cycles, with an expected service life of more than 20 years.

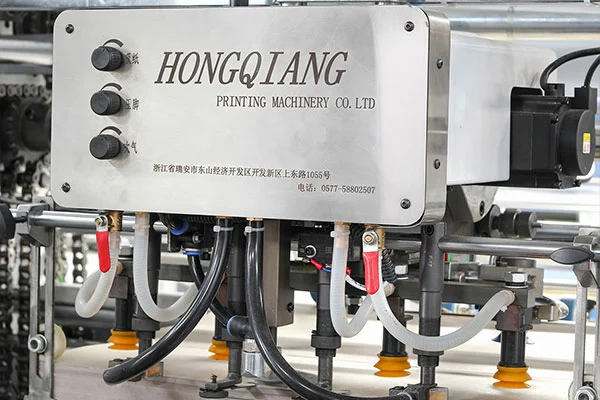

3. Precision Paper Feeding

Servo-controlled feeder system supports smooth paper transport with automatic jam prevention and adjustment.

4. Smart Alignment Technology

Servo-driven alignment delivers positioning within ±1.5 mm for accurate edge matching.

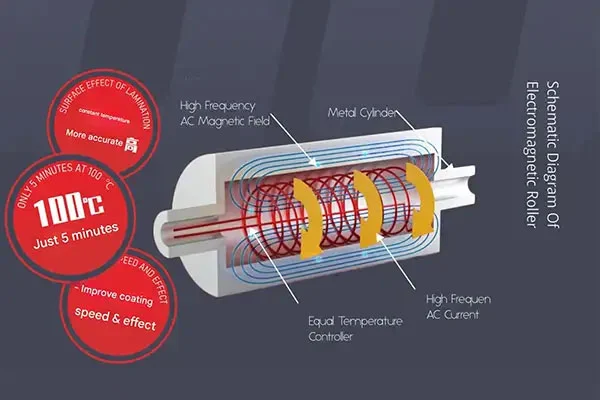

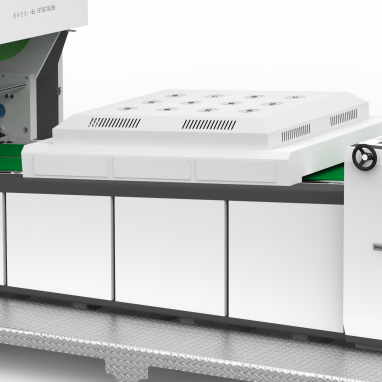

5. Breakthrough Heating System (3-Zone Segmented Electromagnetic Heating Roller)

• Quick Warm-Up: reaches 100°C in about 5 minutes – considerably faster than conventional rollers.

• Stable temperature profile: maintains glue uniformity to improve surface effect even at high speeds.

• Energy Conservation: activates the second zone for formats ≤720 mm, cutting energy consumption by roughly 33%.

• Extended Lifespan: targeted heating contributes to reducing rubber roller wear and service costs.

6. Intelligent Operation Modes

ZDFM-A: One-touch automation covering feeding, gluing, laminating, pressure pumping & relieving, cutting, and stacking.

ZDFM-S: Assisted calibration – by entering sheet sizes via the HMI, the 14 servo units adjust automatically in about 1 minute.

7. Zero-Downtime Productivity

Continuous plate-changing system minimizes downtime and can boost output considerably.

8. Real-Time Process Control

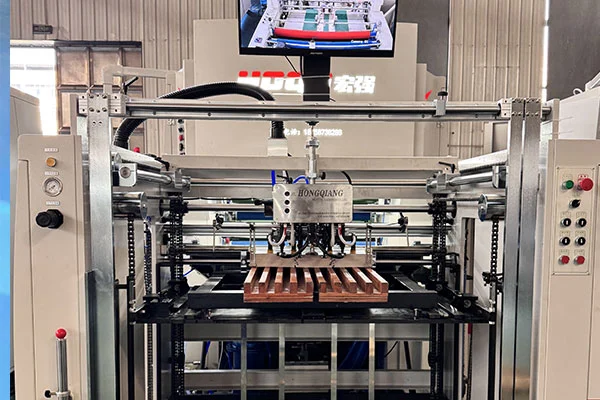

Built-in rear-view monitoring with IoT connectivity for around-the-clock remote operational diagnostics.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

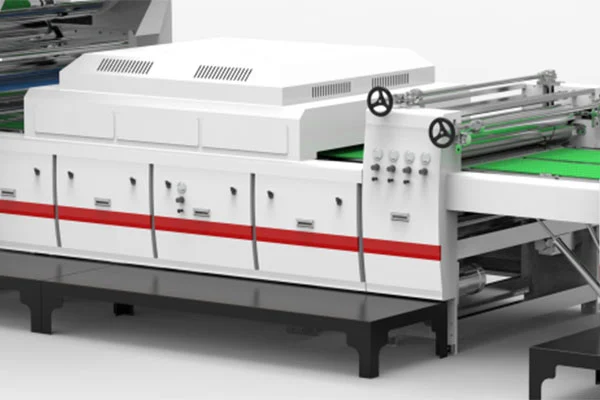

Open-window device (Optional)

About open-window device, it meets fancy packaging orders like paper box, gift box, color box.

This process before the laminating, using high-precision glue rollers ensures evenly pre-coat glue to paper surface then laminating，achieving the effect of no embossing at the edge of the window and no glue traces on the window face.

FAQ

Q1: How does the window laminating process work on the Intelligent Servo Window Laminating Machine?

A1: The optional window device pre-applies adhesive only to paper, then bonds the film to create transparent windows – without edge marks or glue residue. This process is integrated into the Intelligent Servo Window Laminating Machine.

Q2: What types of packaging products are typically made with the Intelligent Servo Window Laminating Machine?

A2: Gift boxes, colour boxes, and paper cartons where product visibility through a window is desired – all in one pass. The Intelligent Servo Window Laminating Machine combines lamination and windowing.

Q3: What ensures the window areas are clean on the Intelligent Servo Window Laminating Machine?

A3: The high-precision glue rollers apply adhesive uniformly on the paper surface, then the film is laminated to the whole pages—so no glue trace or embossing appears on the window face. This precision is a hallmark of the Intelligent Servo Window Laminating Machine.

Q4: Is the open-window step done before or after the lamination?

A4: It is done before lamination – adhesive is pre-applied to the paper surface, and then the film is laid over the entire sheet. This keeps the window area free from glue or marks.
